Europe: Importing transaction level into Bank statement in ISO20022 camt.053 format


View products that this article applies to.

Symptoms

For enabling automatic matching of imported bank statement lines and payments in payment journals, there is a need to import lines from transaction level details of camt.053 file.

↑ Back to the top


Resolution

- New GER configuration to import transaction level of camt.053 file.
- ISO20022 references CrdtRefInf, EndToEndId, AcctSvcrRef are imported to the bank statement line and are available for matching with Payment Id, EndToEndId, Payment reference from the bank document.

To resolve the issue, you need to import the following or a higher version of the ER configurations from LCS shared asset:
  • Bank statement model.version.1
  • Camt.053 Format.version.1.1
  • Bank statement Mapping to destination.version.1.1
Fix downloading instructions are here:


↑ Back to the top


Overview

This feature introduces additional capabilities in Advanced bank reconciliation feature for importing bank statement and matching bank statement lines to bank documents.

Refer to the following documentation to get more details on Advanced bank reconciliation feature:

High level structure of camt.053 XML file is present below for your reference:

A-Level: Group header

  B-Level: Account Statement

    C-Level: Statement Entry

      D-Level: Transaction details

ER configurations are created based on ISO20022 message definition report and considering Common global implementation guidelines (CGI).

No country or bank specifics are considered in this feature release.

Electronic reporting configurations can be easily updated by user when any country or bank specifics need to be considered.

↑ Back to the top


Importing bank statement line from camt.053 entries and transactions

This feature also introduces additional capability for importing ISO20022 references.

The following changes are done in XSLT file of ISO2002XML_to_Reconciliation_xslt (importing from Entry D-Level):

Transformation file was updated to be able to import:

  • Creditor reference information;

  • Account servicer reference information;

  • Instructed amounts;

  • Proprietary bank transaction codes when Domain bank codes are empty.

This XSLT file can be used when there is no more than 1 transaction level line under each entry level line. This XSLT transformation file ensures import of bank statement line from Entry level of camt.053 file.

New Electronic reporting configurations were added to be able to import bank statement lines from Transaction details level:

Configuration Name

Comment

File

Bank statement model

Data model for bank statements

Bank statement model.version.1.xml

Bank statement Mapping to destination

Mapping between bank statement model and bank statement objects in the system

Bank statement Mapping to destination.version.1.1.xml

ISO20022 Camt.053

Format for importing bank statement lines from Transaction level

Camt.053 Format.version.1.1.xml

This can be used when there are more than 1 transaction level line under each entry level line. ISO20022 camt.053 configuration ensures import of bank statement line from Transaction level of camt.053 file.

Consult with your bank to get more details on your camt.053 file to choose an appropriate approach for import.

↑ Back to the top


Using ISO20022 references in matching rules

With this feature, user has now additional possibilities to set up automatic matching rules in advanced bank reconciliation feature, by using imported ISO20022-specific references when using full ISO20022 cycle, including:

  • Export payments in ISO20022 pain.001 credit transfer, ISO20022 pain.008 direct debit formats.

  • Import payments into customer payment journal in ISO20022 camt.054 format.

  • Import return files into vendor payment transfer journal in ISO20022 pain.002 and camt.054 formats.

  • Import bank statements via advanced bank reconciliation.

    Several ISO20022-specific references can now be used for matching between imported bank statement line and payment document.

    - New field End to End ID is added to Bank documents list (generated payments) which is filled with <Voucher_RecID> – similar way as EndToEndID is filled in ISO20022 credit transfer generate payment file.

    - New field Payment ID is added to Bank documents list (generated payments) which is taken from the Payment ID field on the payment journal line.

    - New field Creditor Reference Information is added to Bank statement line. Structured creditor reference from camt.053 file is imported into this new field from camt.053 file.

    The following table shows some ISO20022 references and their flow through payment messages:

Debtor

Debtor bank

Creditor bank

Creditor

Pain.001 ->

MsgId

PmtInfId

InstrId

EndToEndId

CrdtRefInf

Interbank messages

->

EndToEndId

CrdtRefInf



Camt.054 <-

MsgId

PmtInfId

InstrId

EndToEndId

CrdtRefInf

BkTxCd



Camt.054 ->

EndToEndId

CrdtRefInf

BkTxCd

Camt.053 <-

MsgId

PmtInfId

InstrId

EndToEndId

CrdtRefInf

BkTxCd



Camt.053 ->

EndToEndId

CrdtRefInf

BkTxCd



↑ Back to the top


Set up: Associate ER configuration with Bank statement format

Go to Cash and bank management > Setup > Advanced bank reconciliation > Bank statement format.

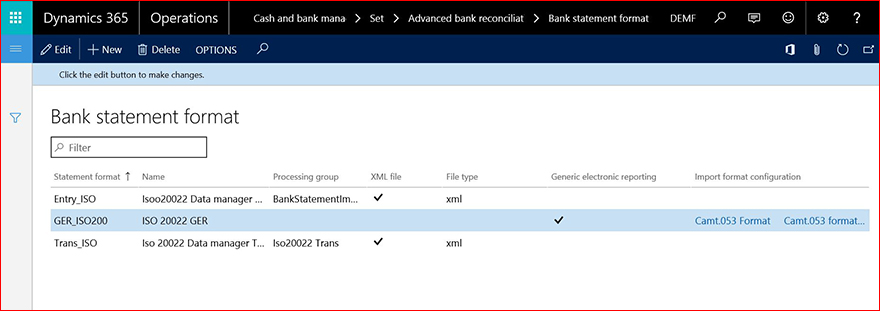

Create bank statement format (for example, ISO20022_trans). Activate the Generic electronic reporting field. Choose ER configuration in the Import format configuration field.

This image shows you how to associate ER configuration with bank statement format.

↑ Back to the top


Set up: Matching rules

Set up additional rules to match bank statement line and bank document line using ISO-20022 specific references in the form of Cash and bank management > Setup > Advanced bank reconciliation > Reconciliation matching rules.

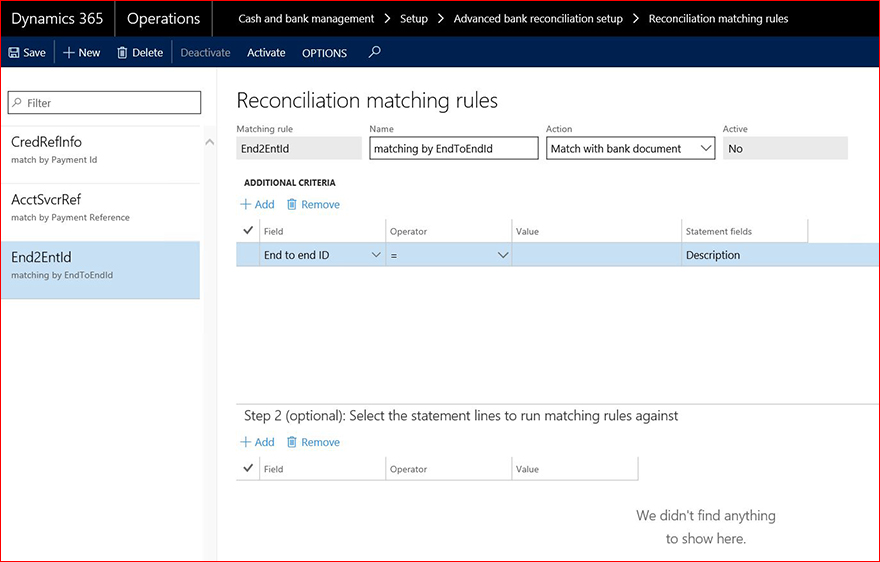

The End to End ID field value in bank document line is equal to the Description field value of Statement (EndtoEndID value from camt.053 file is imported into Description field of Bank statement line). This matching rule can be set up for both Issued credit transfers/direct debits (initiated via vendor and customer payment journal) and Received credit transfers (imported via camt.054 feature into customer payment journal):

This image shows you how to set up additional rules to match bank statement line and bank document line.

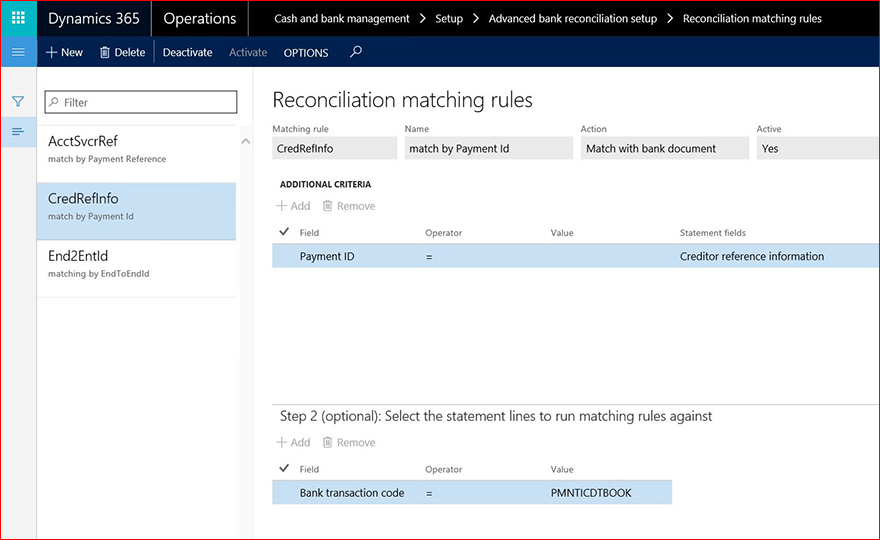

The Creditor Reference Information field value from bank statement line to Payment ID from bank documents (filled with Structured creditor reference in camt.054 import). This matching rule can be applied for issued credit transfers for example (PMNT-ICDT bank transaction code).

This image shows you how to set up additional rules to match bank statement line and bank document line.

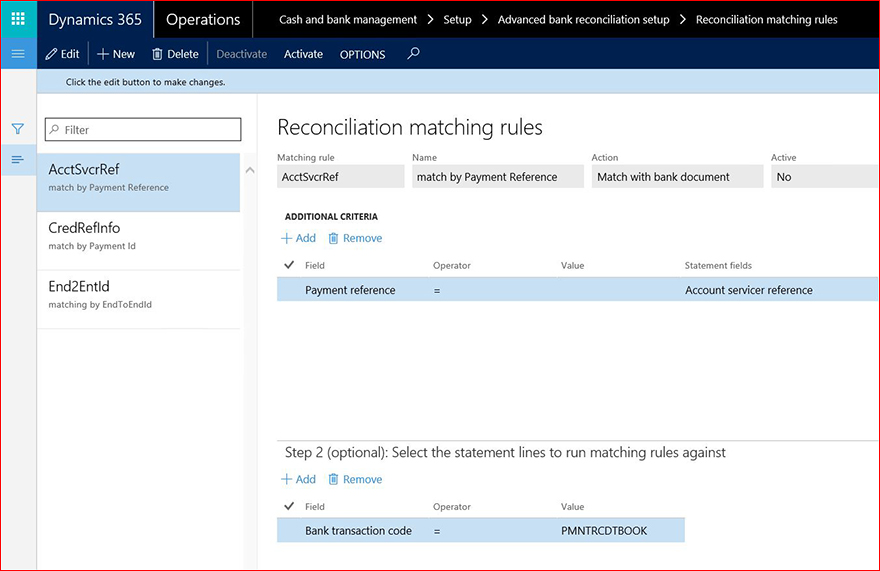

The Payment reference field value in bank document line is equal to the Text field value of bank statement (AccountServicerReference field value from camt.053 file is imported into the Text field of Bank statement line). This matching rule can be applied for received credit transfers for example (PMNT-RCDT bank transaction code).

This image shows you how to set up additional rules to match bank statement line and bank document line.

Note For received credit transfers, imported into a customer payment journal through camt.054 feature, user needs to change Status of payment journal line from Received to Sent to be able to match it via Advanced bank reconciliation.

↑ Back to the top


Transactions: Import and reconcile statement

Import statement in the form of Cash and bank management > Bank statement reconciliation > Bank statements.

Reconcile statement in the form of Cash and bank management > Bank statement reconciliation > Bank reconciliation.

Find more details in article Reconcile bank statements using advanced bank reconciliation.

↑ Back to the top


Hotfix information

This update is available for manual download and installation from the Microsoft Download Center.

Note You can refer to the above link and download the related hotfix.

Prerequisites

You must have the following product and hotfixes installed to apply this hotfix:

You may need to run Organization administration \ Electronic reporting \ Rebuild table references function before you start using this feature.

Restart requirement

You must restart the Application Object Server (AOS) service after you apply the hotfix.

If you are encountering an issue downloading, installing this hotfix, or have other technical support questions, contact your partner or, if enrolled in a support plan directly with Microsoft, you can contact technical support for Microsoft Dynamics and create a new support request. To do this, visit the following Microsoft website:

https://mbs.microsoft.com/support/newstart.aspx

You can also contact technical support for Microsoft Dynamics by phone using these links for country specific phone numbers. To do this, visit one of the following Microsoft websites:

Partners

https://mbs.microsoft.com/partnersource/resources/support/supportinformation/Global+Support+Contacts

Customers

https://mbs.microsoft.com/customersource/northamerica/help/help/contactus

In special cases, charges that are ordinarily incurred for support calls may be canceled if a Technical Support Professional for Microsoft Dynamics and related products determines that a specific update will resolve your problem. The usual support costs will apply to any additional support questions and issues that do not qualify for the specific update in question.
