  2. Picture password option under Sign-in options isn't available after you enable it in Group Policy in Windows 10

Picture password option under Sign-in options isn't available after you enable it in Group Policy in Windows 10

View products that this article applies to.

Symptoms

In Windows 10, assume that you have applied one of the following Group Policy Objects (GPOs) configurations under Computer Configuration/Policies/Administrative Templates/System/Logon:

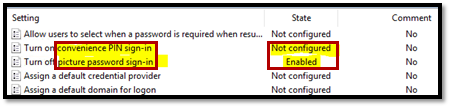

Configuration 1
Turn on convenience PIN sign-in Not Configured
Turn off picture password sign-in Enabled
PicturePassword1

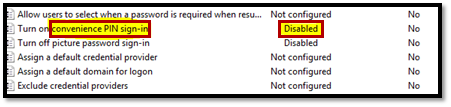

Configuration 2
Turn on convenience PIN sign-in  Disabled
Turn off picture password sign-in Disabled

PicturePassword3

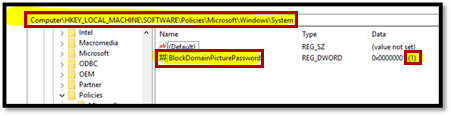

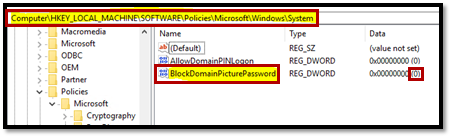

You can track the following registry key to make sure the configuration is applied to clients:

PicturePassword2

PicturePassword4

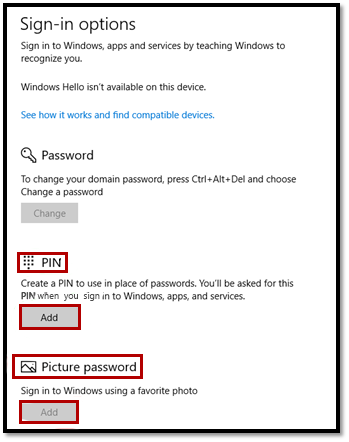

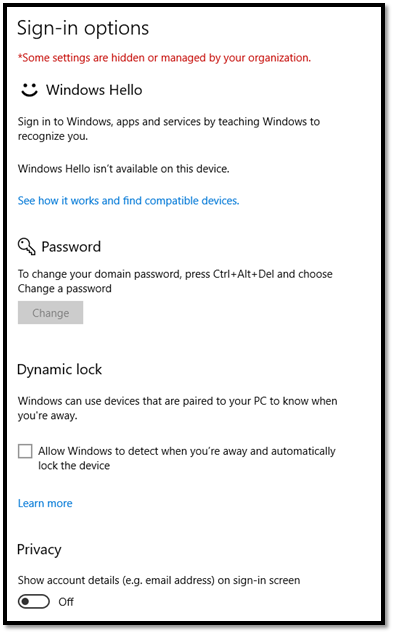

After the configuration is applied to the client, the Picture password option under Sign-in options isn't available.

PicturePassword5

↑ Back to the top

Resolution

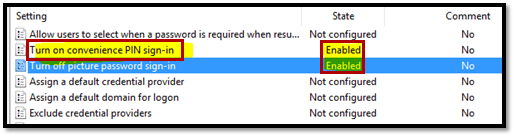

To see the Picture password and the PIN options, you must enable PIN in the domain for the first time. To do this, set the GPO to the following:

Turn on convenience PIN sign-in Enabled
Turn off picture password sign-in Enabled

PicturePassword6

After the PIN option is enabled, even if you disable the PIN option again, the Picture password option is still available.

PicturePassword7

↑ Back to the top

More Information

If you want to use PIN, you may deploy Windows Hello for Business that's more secure. For more information, see the following articles:

↑ Back to the top

Keywords: vkball, kb, Picture password

↑ Back to the top

Article Info
Article ID : 2805935
Revision : 17
Created on : 5/28/2018
Published on : 5/28/2018
Exists online : False
Views : 513
